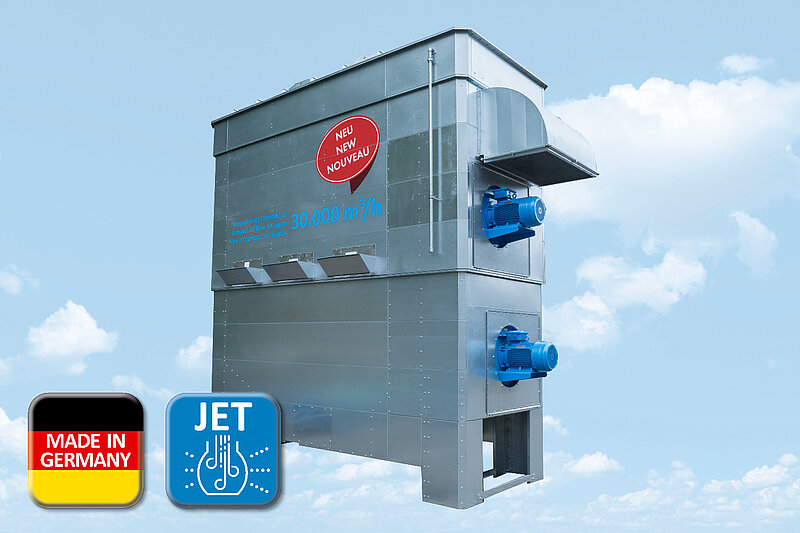

Compact JET filter NKJ

With its new JET filter series type NKJ, NESTRO® Lufttechnik offers the woodworking trade a new compact filter in four performance classes. The NKJ consists of just three pre-assembled elements: an upper JET compressed air unit for filter regeneration, a middle filter/fan unit and one of four different lower stand/discharge units. Due to the modular principle, the filter can be quickly installed on any construction site and connected to pipelines and return air ducts. With its footprint of 1.92 x 4.32 m and heights of 3.68 to 5.18 m, the NKJ compact filter is extremely compact and has an excellent price/performance ratio. The internal edging typical of NESTRO® Lufttechnik has high pressure stability and a perfect appearance.

The new space-saving JET filters

With the new JET filter series type NKJ, the woodworking industry has a new, compact device available for outdoor installation. The cleangas filter is available in four performance classes for operating volume flows from 13,000 to 32,000 m³/h with filter areas from 81 to 210 m². Each of the new four filter types consists of just three pre-assembled elements that are simply placed on top of each other and screwed together on site. The stable compact filters with internal edges can be operated permanently with a negative pressure of up to 3,800 Pa.

  • Compact JET filter with a minimal space requirement of approx. 8.3 m²

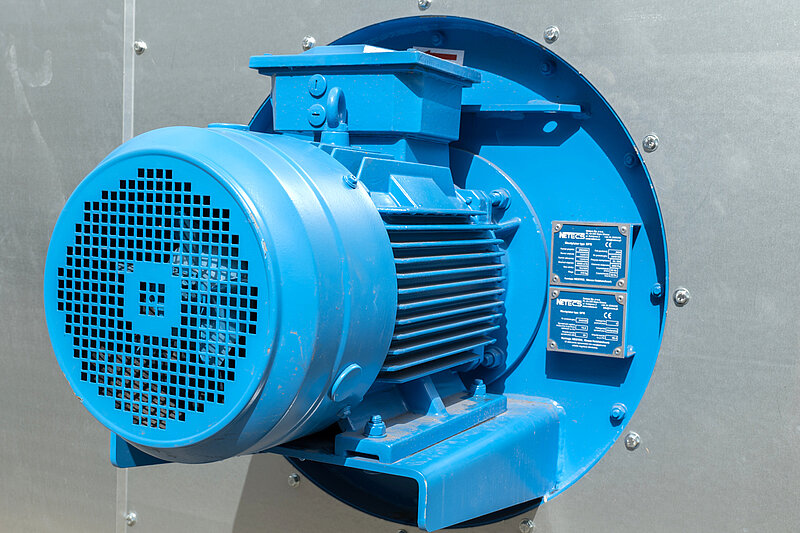

  • IE5 drive package consisting of synchronous reluctance motor and frequency converter
  • Pre-assembled elements – quick and easy to assemble on site

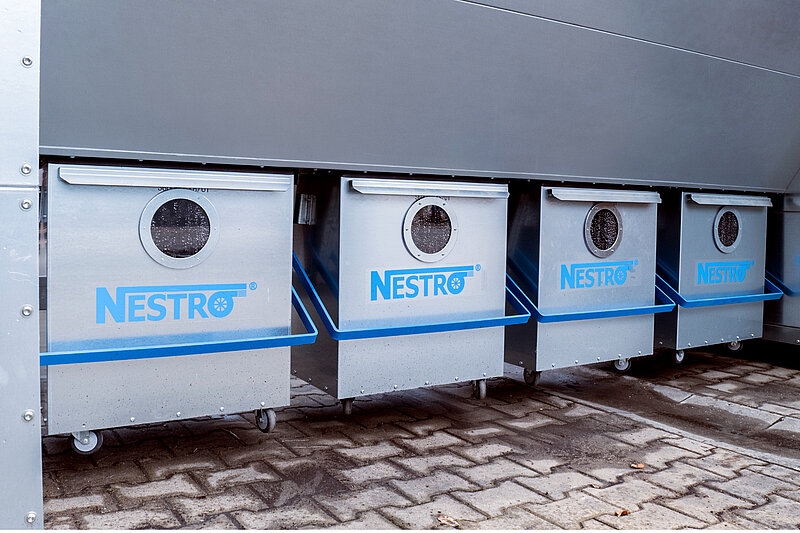

  • Choice of different discharge systems (bins, briquetting, rotary valve, big bag bagging)
  • Heat recovery through return air duct

Data Sheet JET Filter NKJ - DE EN FR

By loading the datasheet you accept issuu's privacy policy.

Learn more

System Documentation
NESTRO supplies you with an extensive system documentation (operating instructions, drawings, wiring diagram etc.) in the language of your country.
